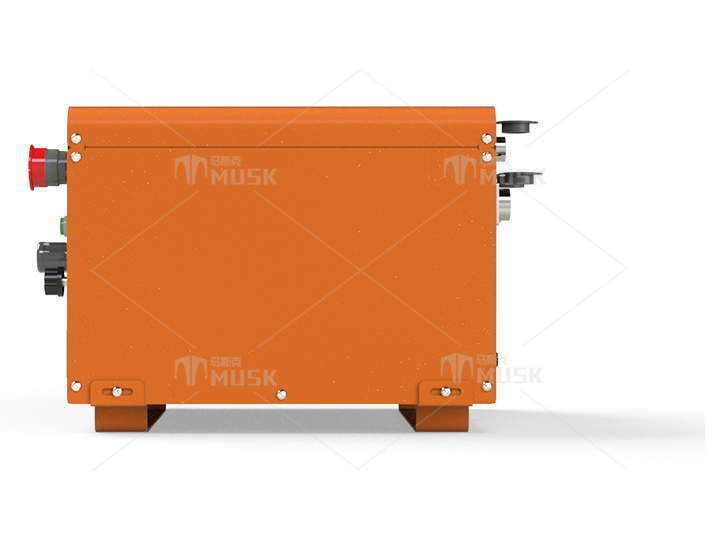

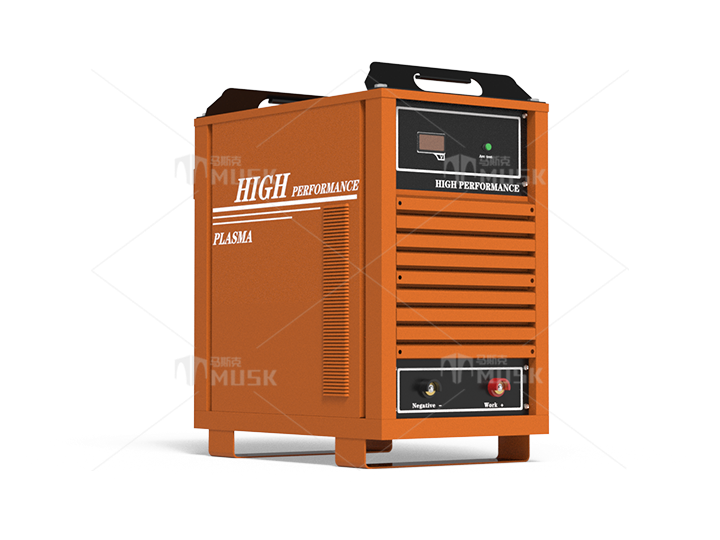

| Project name | Units | Model |
| LGK-400F | ||
| input power | V/Hz | 3~380±15% 50/60 |
| Ikari Input Current | A | 110 |
| Enter capacity | kVA | 72.4 |
| Rated output current and voltage | A/V | 400/210 |
| Ikari no-load voltage | V | 370 |
| Negative rate | - | 100% (40°C) |
| - | 93% | |
| Power Factor | - | 0.92 |
| Output current adjustment range | A | 15-400 |
| Arc ignition method | - | Non-contact arc ignition |

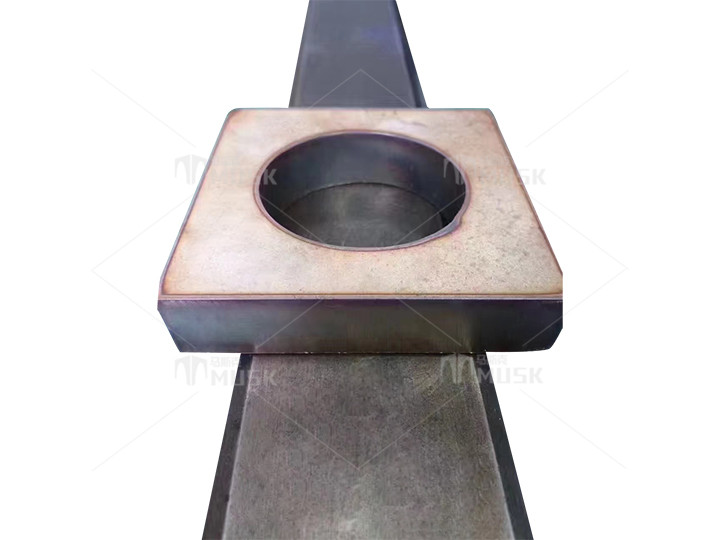

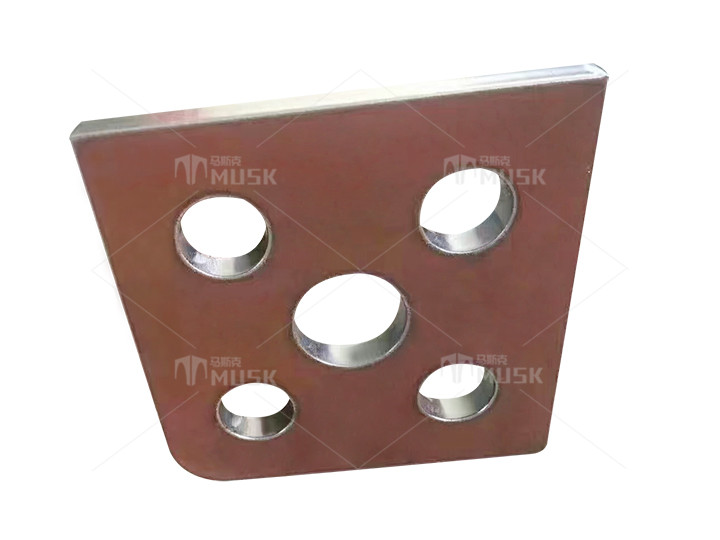

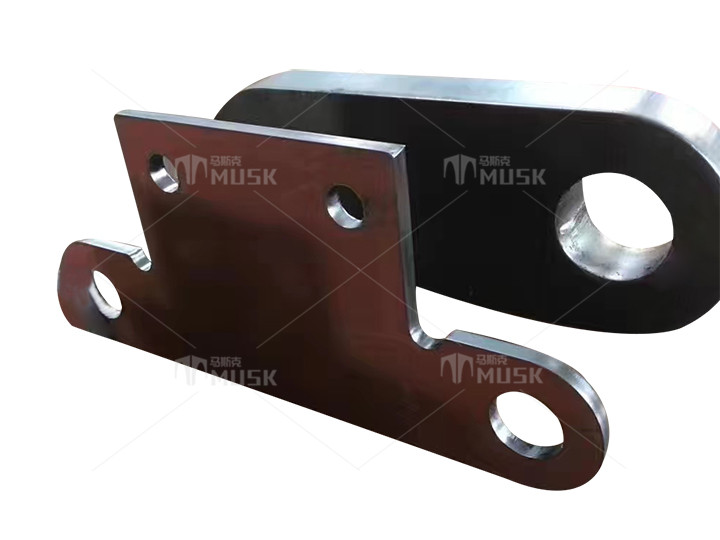

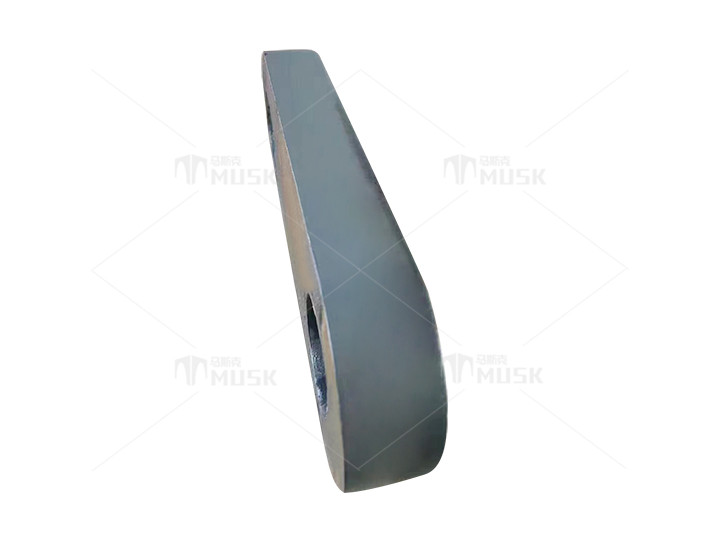

| Quality Cutting Capability (Carbon Steel) | mm | 38 |
| Perforation Protection (Aiming) | mm | 38 |
| max cutting capacity | mm | 64 |
| Insulation class | - | Class F |
| Cooling | - | air cooling |
| Shell Protection Level | - | IP21S |
| Evening size | mm | 1040x480x1240 |
| Power Net Weight | kg | 200 |
 |
 |
 |
 |
 |
 |
